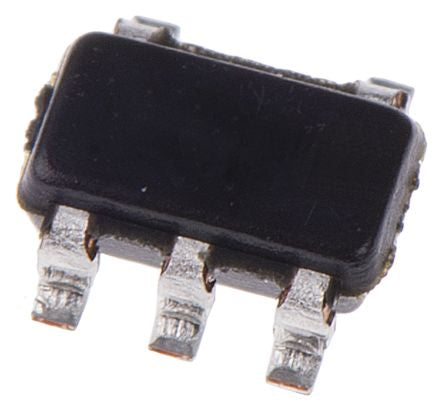

ON Semiconductor NC7S86M5X, 2-Input XOR Logic Gate, 2 → 6 V, 5-Pin SOT-23 [NC7S86M5X]; 670-9781
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | XOR |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | SOT-23 |
| Pin Count | 5 |
| Logic Family | TinyLogic HS |
| Maximum Operating Supply Voltage | 6 V |
| Maximum High Level Output Current | -2.6mA |
| Maximum Propagation Delay Time @ Maximum CL | 17 ns @ 6 V, 20 ns @ 4.5 V, 27 ns @ 3 V, 100 ns @ 2 V |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 2.6mA |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay Test Condition | 50pF |
| Dimensions | 3 x 1.7 x 1.3mm |
| Height | 1.3mm |
| Minimum Operating Temperature | -40 °C |
| Length | 3mm |
| Width | 1.7mm |
