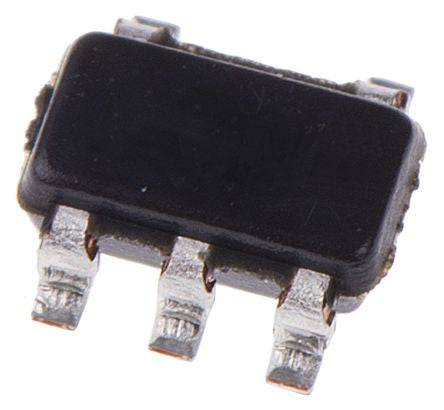

ON Semiconductor NC7SZ86M5X, 2-Input XOR Logic Gate, 5-Pin SOT-23 [NC7SZ86M5X]; 166-1966
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | XOR |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | SOT-23 |
| Pin Count | 5 |
| Logic Family | TinyLogic UHS |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ Maximum CL | 5.4 ns @ 5 V, 6.2 ns @ 3.3 V |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Low Level Output Current | 32mA |
| Width | 1.7mm |
| Height | 1.3mm |
| Length | 3mm |
| Dimensions | 3 x 1.7 x 1.3mm |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -40 °C |
