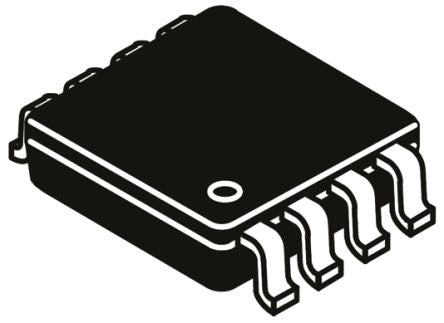

ON Semiconductor, Bus Switch [NC7WB3125K8X]; 146-2113
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | NC7 |
| Configuration | 2 x 1:1 |
| Number of Elements per Chip | 2 |
| Number of Inputs per Chip | 2 |
| Number of Outputs per Chip | 1 |
| Maximum On Resistance | 20Ω |
| Maximum Quiescent Current | 3µA |
| Mounting Type | Surface Mount |
| Package Type | US |
| Pin Count | 8 |
| Maximum Low Level Output Current | 128mA |
| Maximum Propagation Delay Time @ Maximum CL | 0.25 ns @ 50 pF |
| Dimensions | 2 x 2.3 x 0.7mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Number of Output Options per Bit | 2 |
| Width | 2.3mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 4 V |
| Number of Input Options per Bit | 1 |
| Height | 0.7mm |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay Test Condition | 50pF |
| Bus Width | 2bit |
| Length | 2mm |
