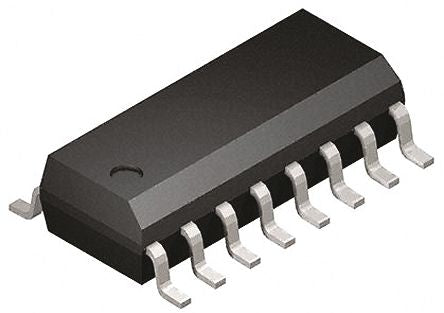

ON Semiconductor NCP1396ADR2G, PWM Voltage Mode Controller, 575 kHz 16-Pin, SOIC [NCP1396ADR2G]; 163-0083
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of PWM Outputs | 1 |
| Control Method | Voltage Mode Controller |
| Topology | Half Bridge, Push-Pull |
| Rise Time | 40ns |
| Fall Time | 20ns |
| Maximum Switching Frequency | 575 kHz |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 16 |
| Maximum Duty Cycle | 0.52 |
| On/Off Pin | Yes |
| Maximum Operating Temperature | +125 °C |
| Length | 10mm |
| Dimensions | 10 x 4 x 1.5mm |
| Width | 4mm |
| Typical Operating Supply Voltage | 12.3 → 14.3 V |
| Minimum Operating Temperature | -40 °C |
| Height | 1.5mm |
