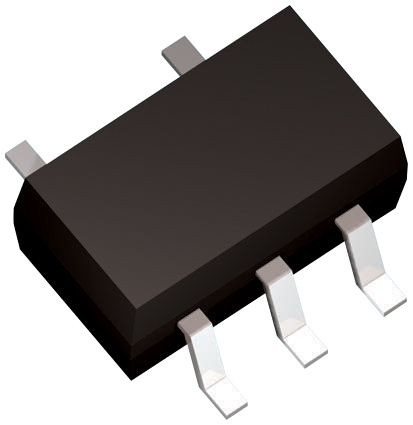

NCS20071SN2T1G ON Semiconductor,, Op Amp, RRO, 3MHz, 2.7 → 36 V, 5-Pin TSOP [NCS20071SN2T1G]; 172-4602
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Operational Amplifier |
| Mounting Type | Surface Mount |
| Package Type | TSOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 2.7 → 36 V |
| Typical Gain Bandwidth Product | 3MHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 2.8V/µs |
| Maximum Operating Frequency | 10 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Automotive Standard | AEC-Q100 |
| Width | 1.65mm |
| Rail to Rail | Rail to Rail Output |
| Height | 1mm |
| Output Current | ±100 mA |
| Input Offset Current | 500pA |
| Input Voltage Range | 2.7 → 36 V |
| Typical Voltage Gain | 118 dB |
| Typical Input Voltage Noise Density | 30nV/√Hz |
| Offset Voltage | ±4.5mV |
| Dimensions | 3.15 x 1.65 x 1mm |
| Length | 3.15mm |
| Maximum Input Voltage | 36 V |
| Minimum Input Voltage | 2.7 V |
