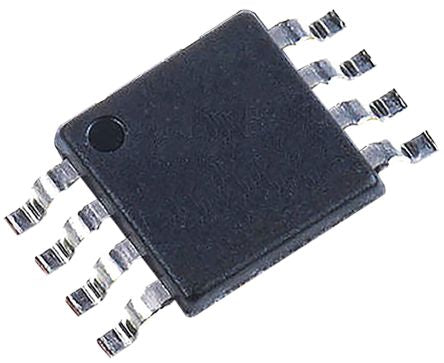

NCS2325DMR2G ON Semiconductor, Zero Drift, Op Amp, RRIO, 350kHz, 1.8 → 5.5 V, 8-Pin MSOP [NCS2325DMR2G]; 170-3389
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Zero Drift |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Typical Gain Bandwidth Product | 350kHz |
| Typical Slew Rate | 0.16V/µs |
| Maximum Operating Frequency | 350 kHz |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Output Current | 35 μA |
| Input Offset Current | 100pA |
| Height | 0.95mm |
| Maximum Input Voltage | 0.3 V |
| Width | 3.1mm |
| Rail to Rail | Rail to Rail Input/Output |
| Offset Voltage | 75µV |
| Typical Voltage Gain | 114 dB |
| Minimum Input Voltage | -0.3 V |
| Input Voltage Range | ±0.3 V |
| Typical Input Voltage Noise Density | 100nV/√Hz |
| Dimensions | 3.1 x 3.1 x 0.95mm |
| Length | 3.1mm |
