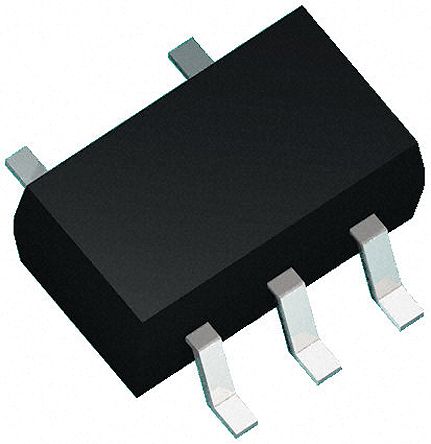

NCV20061SQ3T2G ON Semiconductor,, Op Amp, RRIO, 3MHz, 1.8 → 5.5 V, 5-Pin SC-70 [NCV20061SQ3T2G]; 172-3411
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Operational Amplifier |
| Mounting Type | Surface Mount |
| Package Type | SC-70 |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Typical Gain Bandwidth Product | 3MHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 1.2V/µs |
| Maximum Operating Frequency | 10 kHz |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Automotive Standard | AEC-Q100 |
| Height | 1mm |
| Input Offset Current | 1100pA |
| Output Current | ±100 mA |
| Length | 2.2mm |
| Dimensions | 2.2 x 1.35 x 1mm |
| Typical Input Voltage Noise Density | 20nV/√Hz |
| Input Voltage Range | 1.8 → 5.5 V |
| Minimum Input Voltage | 1.8 V |
| Typical Voltage Gain | 120 dB |
| Offset Voltage | 4mV |
| Width | 1.35mm |
| Rail to Rail | Rail to Rail Input/Output |
| Maximum Input Voltage | 5.5 V |
