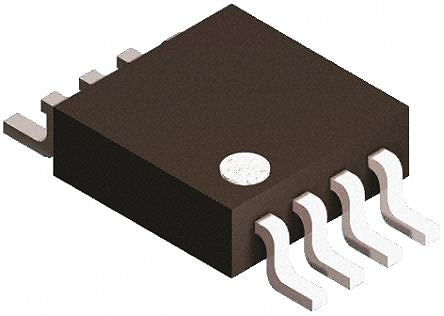

ON Semiconductor NL27WZ02USG, Dual 2-Input NOR Logic Gate, 8-Pin US [NL27WZ02USG]; 162-9125
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NOR |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | US |
| Pin Count | 8 |
| Logic Family | NL |
| Input Type | LVTTL |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ Maximum CL | 5.2 ns @ 50 pF |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Low Level Output Current | 32mA |
| Length | 2.4mm |
| Minimum Operating Temperature | -55 °C |
| Output Type | LVCMOS |
| Height | 0.8mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Width | 2.1mm |
| Dimensions | 2.4 x 2.1 x 0.8mm |
