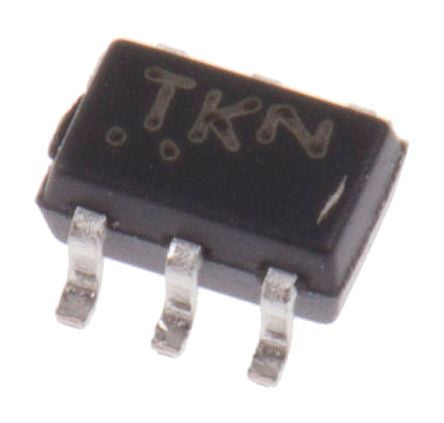

ON Semi NST65011MW6T1G Dual NPN Transistor, 100 mA, 65 V, 6-Pin SOT-363 [NST65011MW6T1G]; 145-4062
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 65 V |
| Package Type | SOT-363 (SC-88) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 380 mW |
| Minimum DC Current Gain | 150 |
| Transistor Configuration | Isolated |
| Maximum Collector Base Voltage | 80 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 6 |
| Number of Elements per Chip | 2 |
| Width | 1.35mm |
| Minimum Operating Temperature | -55 °C |
| Height | 1mm |
| Maximum Base Emitter Saturation Voltage | 950 mV |
| Maximum Collector Emitter Saturation Voltage | 600 mV |
| Dimensions | 2.2 x 1.35 x 1mm |
| Length | 2.2mm |
| Maximum Operating Temperature | +150 °C |
