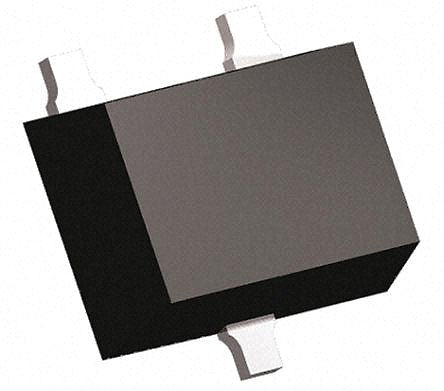

ON Semi NSVF3007SG3T1G NPN Transistor, 30 mA, 12 V, 3-Pin MCPH [NSVF3007SG3T1G]; 172-3415
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 30 mA |
| Maximum Collector Emitter Voltage | 12 V |
| Package Type | MCPH |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 350 mW |
| Minimum DC Current Gain | 60 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 20 V |
| Maximum Emitter Base Voltage | 2 V |
| Maximum Operating Frequency | 8 GHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Height | 0.85mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Length | 2mm |
| Dimensions | 2 x 1.6 x 0.85mm |
| Width | 1.6mm |
