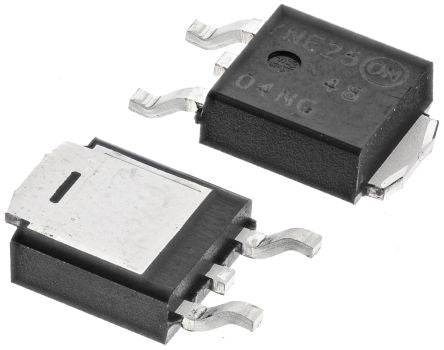

NTD4804NT4G N-Channel MOSFET, 117 A, 30 V, 3-Pin DPAK ON Semiconductor [NTD4804NT4G]; 163-1104
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 117 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | DPAK (TO-252) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 5.5 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 107 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 30 nC @ 4.5 V |
| Height | 2.38mm |
| Maximum Operating Temperature | +175 °C |
| Minimum Operating Temperature | -55 °C |
| Width | 6.22mm |
| Transistor Material | Si |
| Length | 6.73mm |
