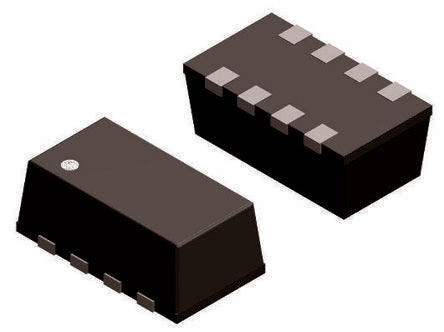

NTHD4508NT1G N-Channel MOSFET, 4.1 A, 20 V, 8-Pin ChipFET ON Semiconductor [NTHD4508NT1G]; 163-1112
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 4.1 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | ChipFET |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 115 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 2.1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 2.6 nC @ 4.5 V |
| Length | 3.1mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 1.1mm |
| Width | 1.7mm |
| Transistor Material | Si |
