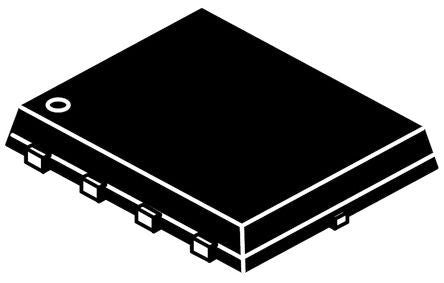

NTMFS5C646NLT1G N-Channel MOSFET, 89 A, 60 V, 8-Pin SO-8FL ON Semiconductor [NTMFS5C646NLT1G]; 163-0288
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 89 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | SO-8FL |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 6.3 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 66 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Width | 5.1mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 1.05mm |
| Typical Gate Charge @ Vgs | 33.7 nC @ 10 V |
| Length | 6.1mm |
