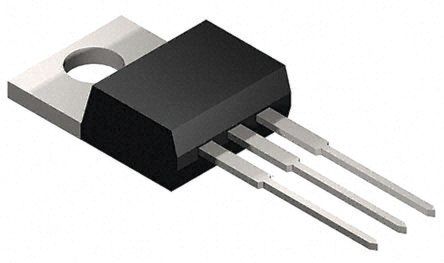

NTP082N65S3F N-Channel MOSFET, 40 A, 650 V, 3+Tab-Pin TO-220 ON Semiconductor [NTP082N65S3F]; 172-8976
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 40 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 82 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 313 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Height | 16.3mm |
| Length | 10.67mm |
| Forward Diode Voltage | 1.3V |
| Width | 4.7mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 81 nC @ 10 V |
