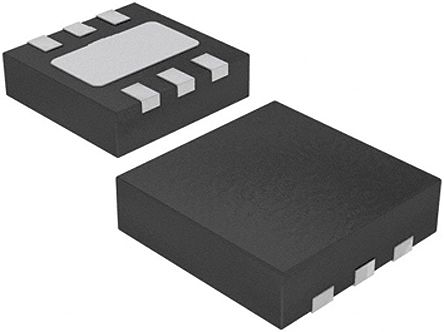

NVMFS4C310NT1G N-Channel MOSFET, 51 A, 30 V NVMFS4C310N, 6-Pin DFN ON Semiconductor [NVMFS4C310NT1G]; 172-3329
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 51 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | DFN |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 9 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.2V |
| Minimum Gate Threshold Voltage | 1.3V |
| Maximum Power Dissipation | 32 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.1V |
| Width | 5.1mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Series | NVMFS4C310N |
| Height | 1.05mm |
| Typical Gate Charge @ Vgs | 9.7 nC @ 4.5 V |
| Automotive Standard | AEC-Q101 |
| Length | 6.1mm |
