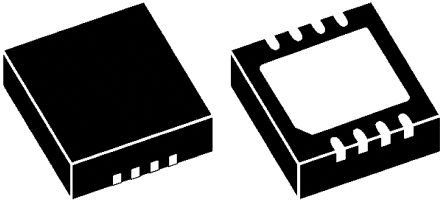

NVTFS5C453NLWFTAG N-Channel MOSFET, 107 A, 40 V NVTFS5C453NL, 8-Pin WDFN ON Semiconductor [NVTFS5C453NLWFTAG]; 171-8405
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 107 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | WDFN |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 5.2 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 68 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.2V |
| Length | 3.15mm |
| Typical Gate Charge @ Vgs | 35 nC @ 10 V |
| Height | 0.75mm |
| Series | NVTFS5C453NL |
| Maximum Operating Temperature | +175 °C |
| Minimum Operating Temperature | -55 °C |
| Automotive Standard | AEC-Q101 |
| Width | 3.15mm |
