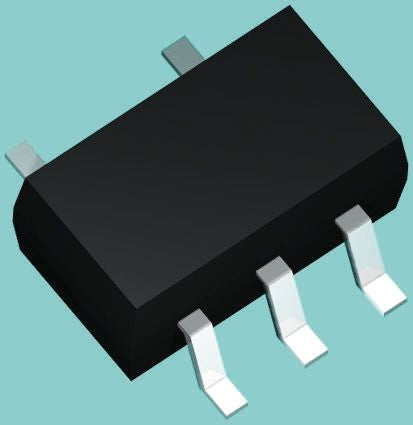

ON Semiconductor NZQA6V8AXV5T1G, Quad Uni-Directional TVS Diode, 20W, 5-Pin SOT-553 [NZQA6V8AXV5T1G]; 162-9243
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 13V |
| Minimum Breakdown Voltage | 6.47V |
| Mounting Type | Surface Mount |
| Package Type | SOT-553 |
| Maximum Reverse Stand-off Voltage | 3V |
| Pin Count | 5 |
| Peak Pulse Power Dissipation | 20W |
| Maximum Peak Pulse Current | 1.6A |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 1.7mm |
| Dimensions | 1.7 x 1.3 x 0.6mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Height | 0.6mm |
| Width | 1.3mm |
