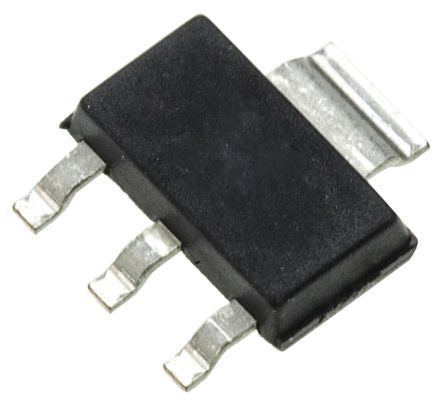

ON Semi PZT3904T1G NPN Transistor, 200 mA, 40 V SOT-223 [PZT3904T1G]; 184-1476
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 200 mA |
| Maximum Collector Emitter Voltage | 40 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1.5 W |
| Minimum DC Current Gain | 30 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 60 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 3 + Tab |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Maximum Base Emitter Saturation Voltage | 0.95 V dc |
| Length | 6.7mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Collector Emitter Saturation Voltage | 0.3 V dc |
| Automotive Standard | AEC-Q101 |
| Height | 1.65mm |
| Width | 3.7mm |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 6.7 x 3.7 x 1.65mm |
