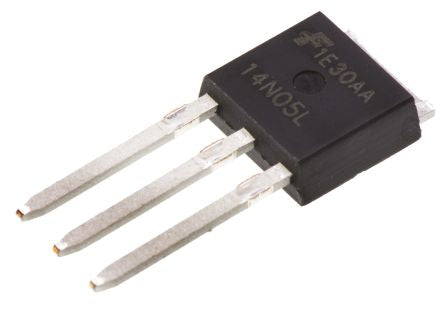

RFD14N05L N-Channel MOSFET, 14 A, 50 V, 3-Pin IPAK ON Semiconductor [RFD14N05L]; 325-7580
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 14 A |
| Maximum Drain Source Voltage | 50 V |
| Package Type | IPAK (TO-251) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 100 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 48 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -10 V, +10 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 25 nC @ 5 V, 40 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Width | 2.5mm |
| Height | 6.3mm |
| Maximum Operating Temperature | +175 °C |
| Length | 6.8mm |
