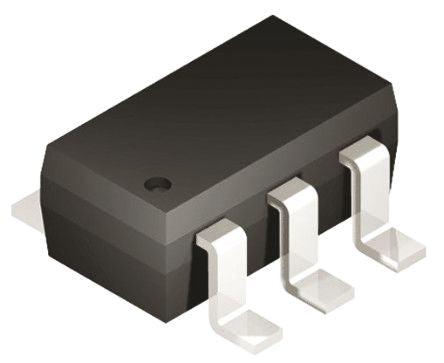

ON Semiconductor SMS12T1G, Quad Uni-Directional TVS Diode, 350W, 6-Pin SC-74 [SMS12T1G]; 162-9263
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Common Anode |
| Maximum Clamping Voltage | 23V |
| Minimum Breakdown Voltage | 13.3V |
| Mounting Type | Surface Mount |
| Package Type | SC-74 |
| Maximum Reverse Stand-off Voltage | 12V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 350W |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 3.1mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Height | 1mm |
| Dimensions | 3.1 x 1.7 x 1mm |
| Width | 1.7mm |
