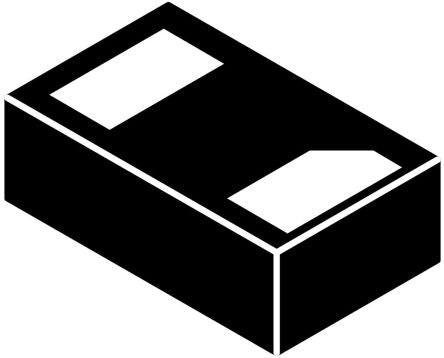

ON Semiconductor SZESD7462N2T5G, Bi-Directional ESD Protection Diode, 0.3W, 2-Pin X2-DFN1006 [SZESD7462N2T5G]; 134-9515
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 47V |
| Minimum Breakdown Voltage | 16.5V |
| Mounting Type | Surface Mount |
| Package Type | X2-DFN1006 |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 0.3W |
| Maximum Peak Pulse Current | 16A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 0.35mm |
| Width | 0.6mm |
| Dimensions | 1 x 0.6 x 0.35mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 100nA |
| Capacitance | 0.55pF |
| Automotive Standard | AEC-Q101 |
| Length | 1mm |
