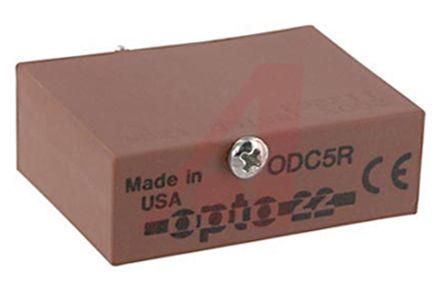

SPST Reed Relay, 0.5 A [ODC5R]; 888-8283
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPST |
| Mounting Type | Rack, Snap-In |
| Maximum Switching Current DC | 0.5 A |
| Maximum Switching Voltage DC | 100V dc |
| Length | 15.2mm |
| Height | 31.8mm |
| Depth | 43.2mm |
| Dimensions | 15.2 x 43.2 x 31.8mm |
| Contact Resistance | 200 mΩ |
| Number of Poles | 1 |
| Relay Switching Classification | General Purpose Relay |
| Operating Time Including Bounce | 250ms |
| Operating Temperature Range | 0 → +70°C |
| Standards Met | CE, RoHS Compliant |
| Maximum Operating Temperature | +70°C |
| Terminal Type | Plug In |
| Life | 5000000 (Mechanical) cycles |
| Minimum Operating Temperature | 0°C |
| Special Features | Analog Signal, Communication Line Multiplexing |
