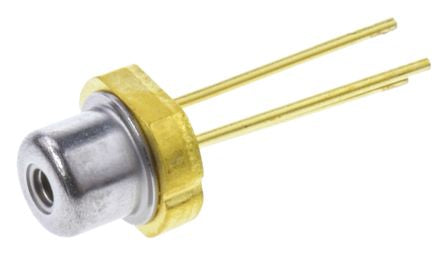

Osram Opto PL 450B Blue Laser Diode 460Nm 80mW, 3-Pin TO-38 package [PL 450B]; 758-7810
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Wavelength | 460nm |
| Laser Type | Continuous Wave |
| Optical Output Power | 80mW |
| Number of Pins | 3 |
| Mounting Type | Through Hole |
| Laser Colour | Blue |
| Perpendicular Beam Divergence FWHM | 25° |
| Parallel Beam Divergence FWHM | 11° |
| Maximum Operating Current | 165mA |
| Dimensions | 3.08 (Dia.) x 3.8mm |
| Length | 9.65mm |
| Height | 3.8mm |
| Diameter | 3.08mm |
| Package Type | TO-38 |
| Reverse Voltage | 2V |
| Minimum Supply Voltage | 5.8V |
| Maximum Supply Voltage | 7V |
| Supply Voltage Range | 5.8 → 7 V |
