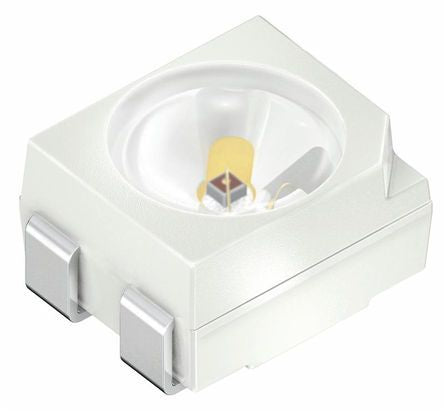

SFH 320-3/4-Z Osram Opto TOPLED 120 ° IR + Visible Light Phototransistor, Surface Mount 2-Pin PLCC package [SFH 320-3/4-Z]; 654-8873
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Spectrums Detected | Infrared, Visible Light |
| Typical Fall Time | 7µs |
| Typical Rise Time | 7µs |
| Number of Channels | 1 |
| Maximum Light Current | 1000µA |
| Maximum Dark Current | 50nA |
| Angle of Half Sensitivity | 120 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Surface Mount |
| Package Type | PLCC |
| Dimensions | 3.4 x 3 x 2mm |
| Collector Current | 15mA |
| Minimum Wavelength Detected | 450nm |
| Width | 3mm |
| Length | 3.4mm |
| Maximum Wavelength Detected | 1150nm |
| Series | TOPLED |
| Spectral Range of Sensitivity | 450 → 1150 nm |
| Height | 2mm |
