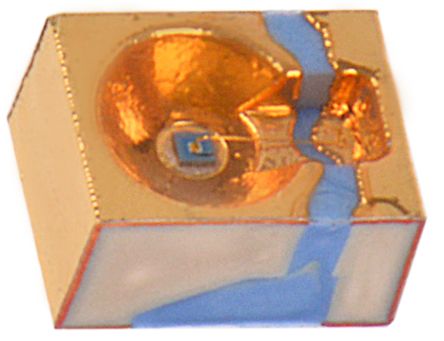

SFH 3605-3/4-Z Osram Opto MIDLED 40 ° IR + Visible Light Phototransistor, Surface Mount 2-Pin [SFH 3605-3/4-Z]; 168-5384
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Spectrums Detected | Infrared, Visible Light |
| Typical Fall Time | 45µs |
| Typical Rise Time | 45µs |
| Number of Channels | 1 |
| Maximum Light Current | 500µA |
| Maximum Dark Current | 50nA |
| Angle of Half Sensitivity | 40 ° |
| Number of Pins | 2 |
| Mounting Type | Surface Mount |
| Dimensions | 3.3 x 2.35 x 1.7mm |
| Collector Current | 15mA |
| Height | 1.7mm |
| Maximum Wavelength Detected | 1100nm |
| Spectral Range of Sensitivity | 500 → 1100 nm |
| Width | 2.35mm |
| Length | 3.3mm |
| Series | MIDLED |
| Minimum Wavelength Detected | 500nm |
