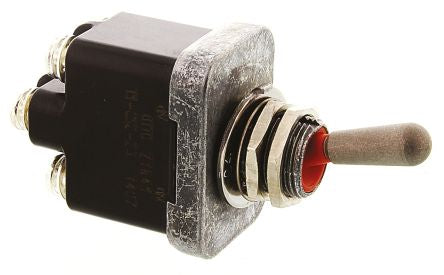

Otto Double Pole Single Throw (DPST) Toggle Switch, Momentary, IP68S, Panel Mount [T9-CS2-30]; 883-7661
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPST |
| Switch Operation | Momentary |
| Contact Current Rating | 11 A @ 115 V ac, 18 A @ 28 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Screw |
| IP Rating | IP68S |
| Panel Cut Out Diameter | 0.67mm |
| Actuator Length | 0.69in |
| Actuator Material | Stainless Steel |
| Voltage Rating | 28 V dc, 115 V ac |
| Operating Temperature Range | -65 → +71°C |
| Panel Cut Out Size | 0.67 (Dia.)mm |
| Mechanical Life | 40000Cycles |
| Standards Met | CSA, Reach, RoHS, UL, WEEE |
| Maximum Operating Temperature | +71°C |
| Minimum Operating Temperature | -65°C |
| Contact Material | Silver |
