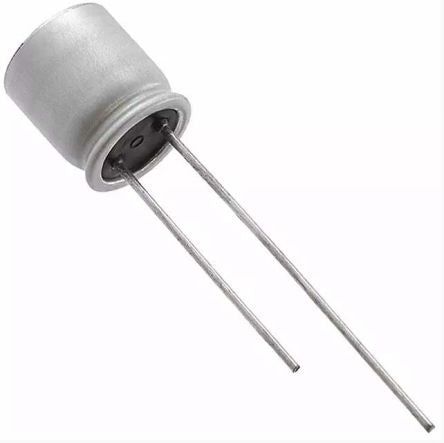

PANASONIC Capacitor: polymer; 15uF; 100VDC; THT; ±20%; Ø10x8mm; Pitch: 5mm [100SXE15MX]

Mã nhà sản xuất

100SXE15MX

Thương hiệu

Mã kho

145-8492

Liên hệ

Super high voltage (100 V.DC max.) RoHS compliance, Halogen free

Super high voltage (100 V.DC max.)

RoHS compliance, Halogen free

THÔNG SỐ KỸ THUẬT
Manufacturer	Panasonic
Manufacturer Part No.	100SXE15MX
Technology	Polymer
Capacitance	15µF
Voltage	100V dc
Mounting Type	Through Hole
Equivalent Series Resistance	60mΩ
Lead Pitch	4.6mm
Tolerance	±20%
Length	8mm
Height	10.3mm
Maximum Operating Temperature	+125°C
Dimensions	10 (Dia) x 8mm
Series	SXE
Electrolyte Type	Solid
Diameter	10mm
Lifetime	1000h
Polarised	Polar
Leakage Current	75 µA
Ripple Current	2000mA rms
Minimum Operating Temperature	-55°C
Dissipation Factor	0.12%

Giá: Liên hệ – gửi mã và số lượng về [email protected] để nhận báo giá nhanh.
