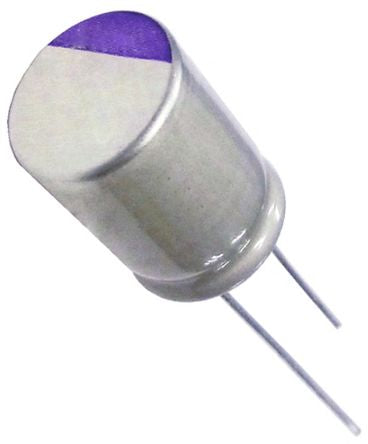

Panasonic 270μF 16V dc Aluminium Polymer Capacitor, Through Hole 6.3 (Dia.) x 10mm +105°C 6.3mm 2.5mm [16SEPG270M]; 144-6589
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 270 µF |
| Voltage | 16 V dc |
| Mounting Type | Through Hole |
| Technology | Polymer |
| Dimensions | 6.3 (Dia.) x 10mm |
| Height | 10mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 2.5mm |
| Lifetime | 5000h |
| Series | SEPG |
| Tolerance | ±20% |
| Ripple Current | 5800mArms |
| Leakage Current | 864 μA |
| Equivalent Series Resistance | 8mΩ |
| Dissipation Factor | 0.0012 |
| Polarised | Polar |
