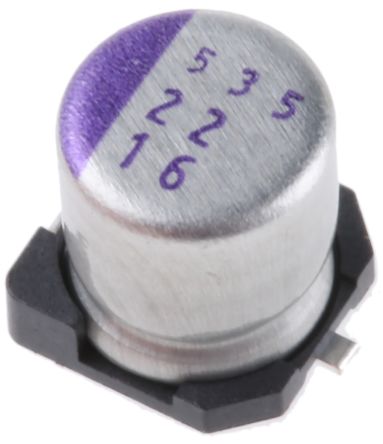

Panasonic 22μF 16V dc Aluminium Polymer Capacitor, Surface Mount 5 x 5.9mm +105°C 5mm [16SVP22M]; 788-7536
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 22 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Technology | Polymer |
| Dimensions | 5 x 5.9mm |
| Height | 5.9mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 5mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Series | OS-CON |
| Ripple Current | 1060mArms |
| Leakage Current | 176 μA |
| Polarised | Polar |
| Equivalent Series Resistance | 90mΩ |
| Tolerance | ±20% |
