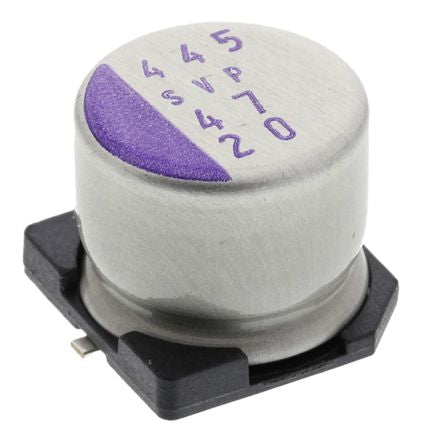

Panasonic 47μF 20V dc Aluminium Polymer Capacitor, Surface Mount 8 x 6.9mm +105°C 8mm [20SVP47M]; 100-0113
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 20 V dc |
| Mounting Type | Surface Mount |
| Technology | Polymer |
| Dimensions | 8 x 6.9mm |
| Height | 6.9mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Series | OS-CON |
| Polarised | Polar |
| Equivalent Series Resistance | 45mΩ |
| Tolerance | ±20% |
| Ripple Current | 1890mArms |
| Leakage Current | 188 μA |
