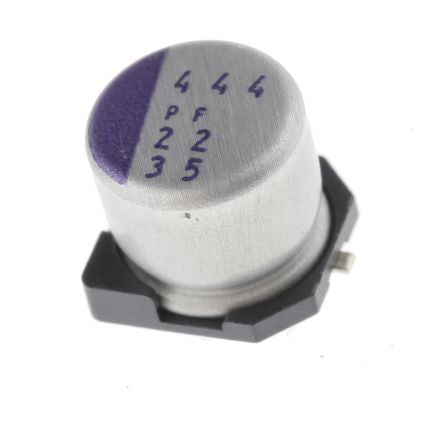

Panasonic 22μF 35V dc Aluminium Polymer Capacitor, Surface Mount 6.3 x 5.9mm +105°C 6.3mm [35SVPF22M]; 103-4742
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 22 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Technology | Polymer |
| Dimensions | 6.3 x 5.9mm |
| Height | 5.9mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 5000h |
| Series | OS-CON |
| Tolerance | ±20% |
| Ripple Current | 2.6A |
| Leakage Current | 154 μA |
| Polarised | Polar |
| Equivalent Series Resistance | 35mΩ |
