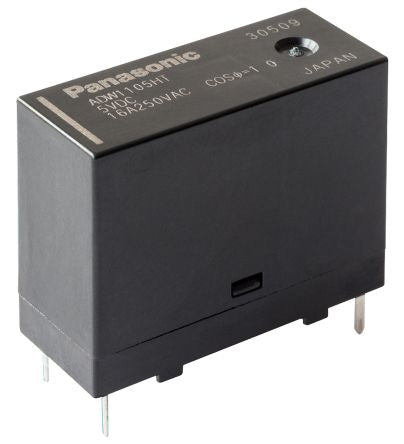

SPNO PCB Mount Latching Relay 16 A, 3V dc For Use In Home Appliances, Industrial Equipment, Lighting Control Equipment, [ADW1103HTW]; 134-7876
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 3 V dc |
| Contact Configuration | SPNO |
| Switching Current | 16 A |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage AC | 277V |
| Length | 24mm |
| Depth | 10mm |
| Height | 18.8mm |
| Dimensions | 24 x 10 x 18.8mm |
| Terminal Type | PCB Pin |
| Application | Home Appliances, Industrial Equipment, Lighting Control Equipment, Security Equipment, Smart Meters, Various Power Supplies |
| Standards Met | CSA, CUL, CULus, IEC 60335-1, PTI 325V, TV-8, UL, VDE |
| Contact Material | Silver Alloy |
| Features | Small Polarised Power Relays, 1 Form A 16 A |
| Operating Temperature Range | -40 → +70°C |
| Coil Resistance | 45 Ω |
| Electrical Life | 20000 operations |
| Isolation Coil To Contact | 5000Vrms |
| Maximum Operating Temperature | +70°C |
| Coil Power | 200mW |
| Minimum Operating Temperature | -40°C |
| Maximum Switching Power AC | 4.432 kVA |
| Life | Minimum of 1000000 (Mechanical) operations, Minimum of 20000 (Electrical) operations |
| Number of Poles | 1 |
| Relay Switching Classification | Latching Relay |
