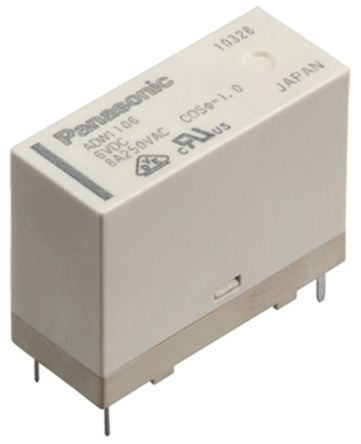

SPST PCB Mount Latching Relay 8 A, 5V dc For Use In General Purpose Applications [ADW1105TW]; 811-3678
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Contact Configuration | SPST |
| Switching Current | 0.333333333333333 |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage AC | 250V |
| Length | 24mm |
| Depth | 10mm |
| Height | 18.8mm |
| Dimensions | 24 x 10 x 18.8mm |
| Terminal Type | PCB Pin |
| Application | General Purpose |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver Alloy |
| Coil Power | 200mW |
| Maximum Operating Temperature | +85°C |
| Features | IEC60335-1 Compliant, PTI 325V |
| Operating Temperature Range | -40 → +85°C |
| Coil Resistance | 125 Ω |
| Maximum Switching Power AC | 2 kVA |
| Life | 5 x 10⁴ (Electrical) operations, 100000 (Mechanical) operations |
| Electrical Life | 5 x 10^4 operations |
| Isolation Coil To Contact | 5kV rms |
