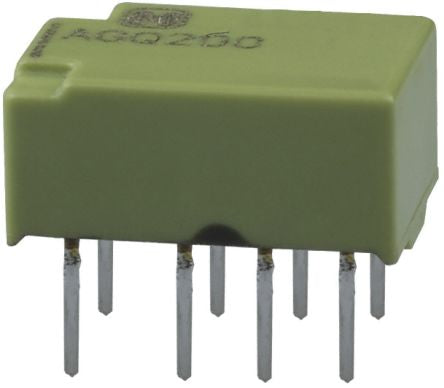

DPDT PCB Mount Latching Relay 1 A, 12V dc For Use In Signal Applications [AGQ21012]; 699-5904
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Contact Configuration | DPDT |
| Switching Current | 0.0416666666666667 |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage AC | 125V ac |
| Maximum Switching Voltage DC | 110V dc |
| Maximum Switching Power DC | 30 W |
| Length | 10.6mm |
| Depth | 7.2mm |
| Height | 5.2mm |
| Dimensions | 10.6 x 5.2 x 7.2mm |
| Terminal Type | Through Hole |
| Application | Signal |
| Maximum Operating Temperature | +85°C |
| Isolation Coil To Contact | 1.5kV rms |
| Minimum Operating Temperature | -40°C |
| Contact Material | Gold Plated |
| Operating Temperature Range | -40 → +85°C |
| Maximum Switching Power AC | 37.5 VA |
| Life | 100000 (Electrical) cycles, 50000000 (Mechanical) cycles |
| Coil Power | 100mW |
| Coil Resistance | 1.44 kΩ |
