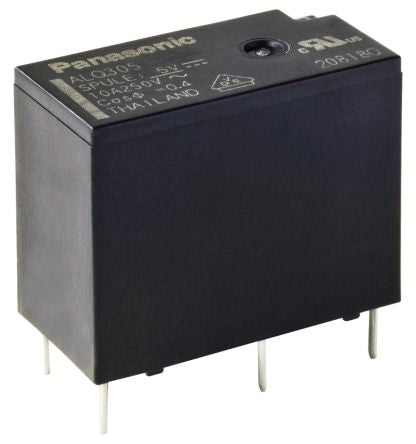

SPDT PCB Mount Non-Latching Relay 10 A, 5V dc For Use In Air Conditioners, Cooking Ovens, Home Appliances, Industrial [ALQ1F05]; 134-7864
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Contact Configuration | SPDT |
| Switching Current | 0.416666666666667 |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 30V |
| Maximum Switching Power DC | 30 (NC) W, 150 (NO) W |
| Length | 20mm |
| Depth | 10mm |
| Height | 15.6mm |
| Dimensions | 20 x 10 x 15.6mm |
| Terminal Type | PCB Pin |
| Application | Air Conditioners, Cooking Ovens, Home Appliances, Industrial Equipment, Motor Controls, Power Supply, Refrigerators, Robots, Washing Machine |
| Operating Temperature Range | -40 → +85°C |
| Coil Resistance | 62.5 Ω |
| Maximum Switching Power AC | 500 (NC) VA, 1250 (NO) VA |
| Life | Minimum of 10000000 (Mechanical) operations |
| Isolation Coil To Contact | 4000Vrms |
| Maximum Operating Temperature | +85°C |
| Coil Power | 400mW |
| Minimum Operating Temperature | -40°C |
| Standards Met | CQC, CSA, CUL, CULus, UL, VDE |
| Contact Material | Silver Alloy |
| Relay Switching Classification | Non-Latching Relay |
| Number of Poles | 1 |
