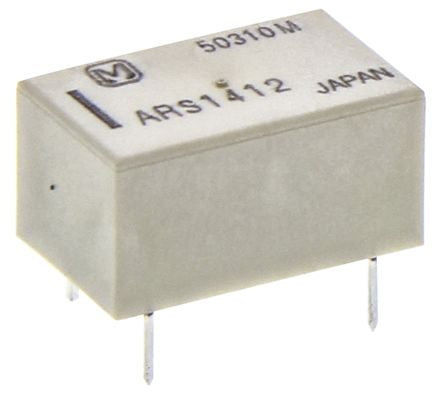

SPDT PCB Mount, HF Relay, 3GHz 12V dc [ARS1412]; 699-6676
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Coil Frequency | 3GHz |
| Coil Resistance | 720 Ω |
| Contact Resistance | 100 mΩ |
| Insertion Loss | 0.35 dB @ 3 GHz |
| Isolation | 35 dB @ 3 GHz |
| VSWR Voltage Standing Wave Ratio | 1.4 @ 3 GHz |
| Impedance | 50Ω |
| Contact Configuration | SPDT |
| Coil Voltage | 12 V dc |
| Mounting Type | PCB Mount |
| Coil Power | 200mW |
| Contact Material | Gold Plated |
| Operating Temperature Range | -40 → +70°C |
| Dimensions | 14 x 8.6 x 7.2mm |
| Switching Voltage | 30V |
| Maximum Operating Temperature | +70°C |
| Depth | 8.6mm |
| Operating Time Including Bounce | 10ms |
| Life | 1000000 (Electrical) cycles |
| Length | 14mm |
| Height | 7.2mm |
| Minimum Operating Temperature | -40°C |
