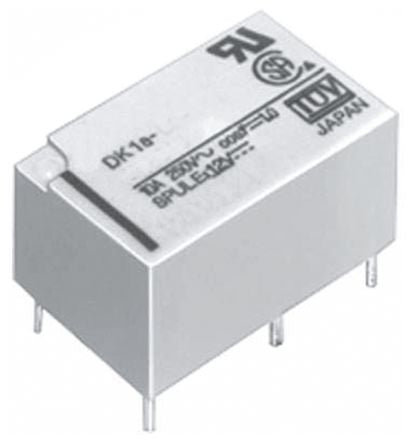

SPNO PCB Mount Latching Relay 10 A, 5V dc For Use In Domestic Appliances Applications [DK1A-L2-5V-F]; 811-3075
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Contact Configuration | SPNO |
| Switching Current | 0.416666666666667 |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 125V |
| Maximum Switching Power DC | 300 W |
| Length | 20mm |
| Depth | 12.5mm |
| Height | 10mm |
| Dimensions | 20 x 12.5 x 10mm |
| Terminal Type | PCB Pin |
| Application | Domestic Appliances |
| Life | 5 x 10⁷ (Mechanical) operations, 100000 (Electrical) operations |
| Operating Temperature Range | -40 → +65°C |
| Coil Power | 200mW |
| Maximum Switching Power AC | 2.5 kVA |
| Coil Resistance | 125 Ω |
| Features | High Sensitivity |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +65°C |
| Contact Material | Silver Alloy |
| Isolation Coil To Contact | 4kV rms |
| Electrical Life | 100000 operations |
