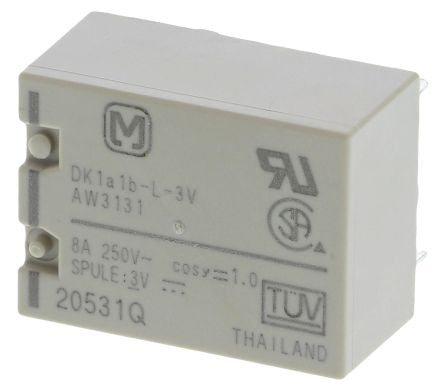

SPDT PCB Mount Latching Relay 8 A, 3V dc For Use In Power Applications [DK1A1BL3]; 699-6017
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 3 V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 0.333333333333333 |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 125V dc |
| Maximum Switching Power DC | 240 W |
| Length | 20mm |
| Depth | 15mm |
| Height | 9.7mm |
| Dimensions | 20 x 9.7 x 15mm |
| Terminal Type | Through Hole |
| Application | Power |
| Maximum Operating Temperature | +65°C |
| Isolation Coil To Contact | 4kV rms |
| Coil Resistance | 45 Ω |
| Coil Power | 200mW |
| Maximum Switching Power AC | 2 kVA |
| Life | 50000000 (Mechanical) cycles |
| Minimum Operating Temperature | -40°C |
| Contact Material | Gold Plated |
| Operating Temperature Range | -40 → +65°C |
