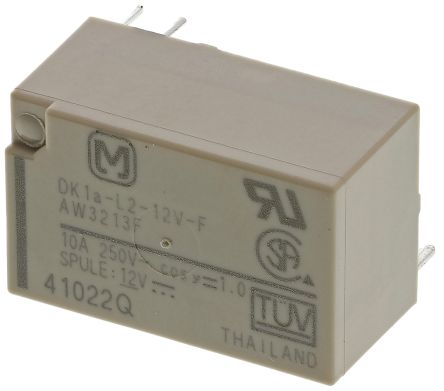

SPST PCB Mount Latching Relay 10 A, 12V dc For Use In Power Applications [DK1AL212]; 699-6011
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 0.416666666666667 |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 125V dc |
| Maximum Switching Power DC | 300 W |
| Length | 20mm |
| Depth | 12.5mm |
| Height | 9.7mm |
| Dimensions | 20 x 9.7 x 12.5mm |
| Terminal Type | Through Hole |
| Application | Power |
| Isolation Coil To Contact | 4kV rms |
| Operating Temperature Range | -40 → +65°C |
| Life | 50000000 (Mechanical) cycles |
| Coil Power | 200mW |
| Maximum Operating Temperature | +65°C |
| Minimum Operating Temperature | -40°C |
| Contact Material | Gold Plated |
| Coil Resistance | 720 Ω |
| Maximum Switching Power AC | 2.5 kVA |
