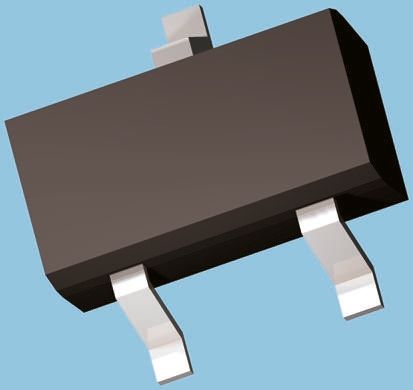

Panasonic, DRC2523Y0L NPN Digital Transistor, 500 mA 50 V 2.2 kΩ, Ratio Of 0.22, 3-Pin Mini3 G3 B [DRC2523Y0L]; 710-6155
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Number of Elements per Chip | 1 |
| Maximum Continuous Collector Current | 500 mA |
| Maximum Collector Emitter Voltage | 50 V |
| Typical Input Resistor | 2.2 kΩ |
| Mounting Type | Surface Mount |
| Package Type | Mini3 G3 B |
| Pin Count | 3 |
| Minimum DC Current Gain | 60 |
| Transistor Configuration | Single |
| Maximum Power Dissipation | 200 mW |
| Maximum Collector Emitter Saturation Voltage | 0.25 V |
| Typical Resistor Ratio | 0.22 |
| Height | 1.1mm |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 2.9 x 1.5 x 1.1mm |
| Length | 2.9mm |
| Width | 1.5mm |
