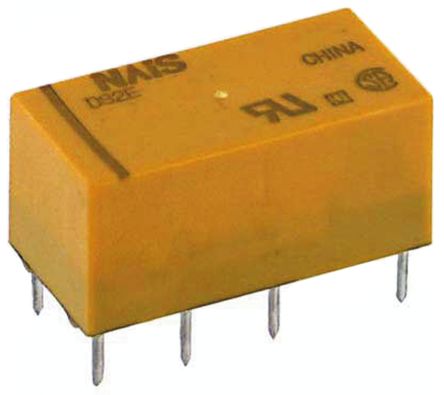

DPDT PCB Mount Latching Relay 3 A, 24V dc For Use In Telecommunications Applications [DS2E-SL2-DC24V]; 173-9244
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 0.125 |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V |
| Maximum Switching Power DC | 60 W |
| Length | 20mm |
| Depth | 9.9mm |
| Height | 9.9mm |
| Dimensions | 20 x 9.9 x 9.9mm |
| Terminal Type | PCB Pin |
| Application | Telecommunications |
| Coil Power | 180mW |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +70°C |
| Coil Resistance | 3.2 k |
| Electrical Life | 500000 operations |
| Contact Material | Gold Plated |
| Features | Gold-clad Twin Contacts Ensure High Reliability, Polarized Magnetic Circuits Realize Resistance to Shock and Vibration, Suitable for use in Difficult Environments |
| Life | 10000000 operations |
| Maximum Switching Power AC | 125 VA |
| Isolation Coil To Contact | 1.5kV rms |
