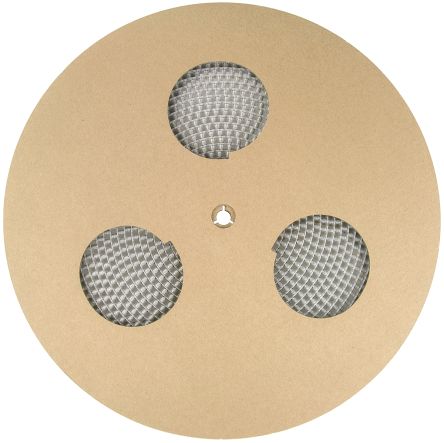

Panasonic 150μF 10V dc Aluminium Electrolytic Capacitor, Surface Mount 6.3 (Dia.) x 5.8mm +105°C 6.3mm 1.8mm [EEEFK1A151P]; 747-8879
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 150 µF |
| Voltage | 10 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 6.3 (Dia.) x 5.8mm |
| Height | 5.8mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 1.8mm |
| Lifetime | 2000h |
| Series | FK SMD |
| Polarised | Polar |
| Equivalent Series Resistance | 360mΩ |
| Tolerance | ±20% |
| Ripple Current | 240mA |
| Leakage Current | 15 μA |
