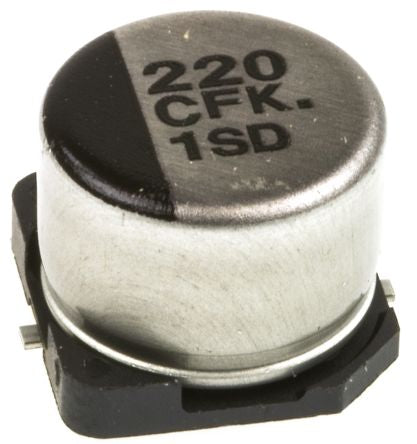

Panasonic 220μF 16V dc Aluminium Electrolytic Capacitor, Surface Mount 8 (Dia.) x 6.2mm +105°C 8mm 2.2mm [EEEFK1C221AP]; 919-0685
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 6.2mm |
| Height | 6.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 2.2mm |
| Series | FK SMD |
| Ripple Current | 300mA |
| Polarised | Polar |
| Leakage Current | 35.2 μA |
| Tolerance | ±20% |
| Equivalent Series Resistance | 260mΩ |
