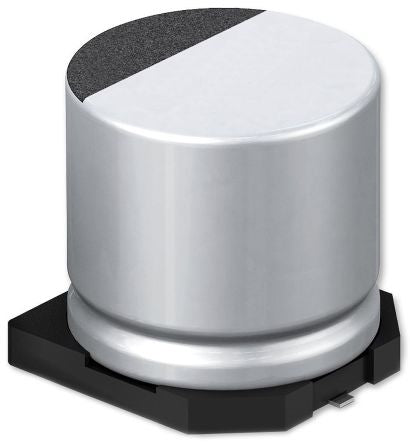

Panasonic 680μF 25V dc Aluminium Electrolytic Capacitor, Surface Mount 10 (Dia.) x 10.2mm +105°C 10mm 4.6mm [EEEFK1E681SP]; 106-2868
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 680 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 10.2mm |
| Depth | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 4.6mm |
| Lifetime | 2000h |
| Series | FKS |
| Ripple Current | 850mA |
| Equivalent Series Resistance | 80mΩ |
| Dissipation Factor | 0.0014 |
| Leakage Current | 170 μA |
| Tolerance | ±20% |
| Polarised | Polar |
