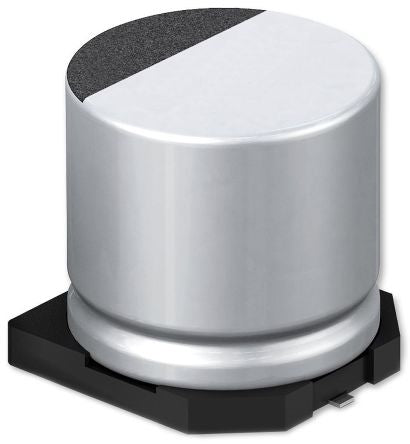

Panasonic 150μF 25V dc Aluminium Electrolytic Capacitor, Surface Mount 6.3 (Dia.) x 7.7mm +105°C 6.3mm 1.8mm [EEEFKE151XSP]; 106-2865
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 150 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 6.3 (Dia.) x 7.7mm |
| Depth | 7.7mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 1.8mm |
| Lifetime | 2000h |
| Series | FKS |
| Leakage Current | 37.5 μA |
| Ripple Current | 280mA |
| Polarised | Polar |
| Tolerance | ±20% |
| Dissipation Factor | 0.0014 |
| Equivalent Series Resistance | 340mΩ |
