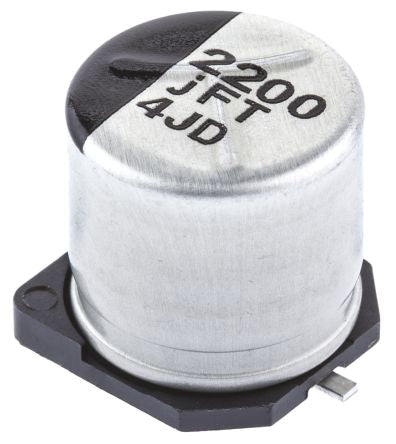

Panasonic 2200μF 6.3V dc Aluminium Electrolytic Capacitor, Surface Mount 10 (Dia.) x 10.2mm +105°C 10mm 4.6mm [EEEFT0J222AP]; 747-2468
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2200 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 4.6mm |
| Series | FT SMD |
| Equivalent Series Resistance | 60mΩ |
| Ripple Current | 1.19A |
| Tolerance | ±20% |
| Leakage Current | 138.6 μA |
| Polarised | Polar |
