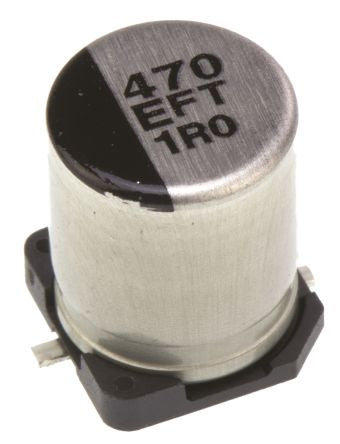

Panasonic 470μF 25V dc Aluminium Electrolytic Capacitor, Surface Mount 8 (Dia.) x 10.2mm +105°C 8mm 3.1mm [EEEFT1E471AP]; 103-4779
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 470 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 3.1mm |
| Series | FT SMD |
| Leakage Current | 117.5 μA |
| Ripple Current | 850mA |
| Polarised | Polar |
| Equivalent Series Resistance | 80mΩ |
| Tolerance | ±20% |
