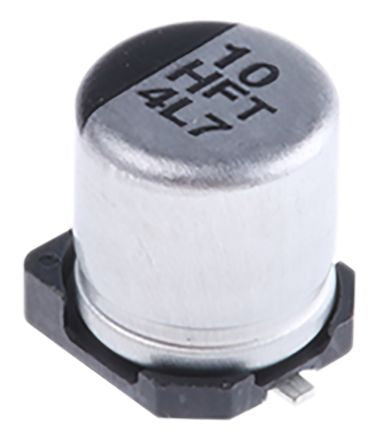

Panasonic 10μF 50V dc Aluminium Electrolytic Capacitor, Surface Mount 5 (Dia.) x 5.8mm +105°C 5mm 1.5mm [EEEFT1H100AR]; 103-4756
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 50 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 5 (Dia.) x 5.8mm |
| Height | 5.8mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 5mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 1.5mm |
| Series | FT SMD |
| Polarised | Polar |
| Equivalent Series Resistance | 880mΩ |
| Ripple Current | 165mA |
| Tolerance | ±20% |
| Leakage Current | 5 μA |
