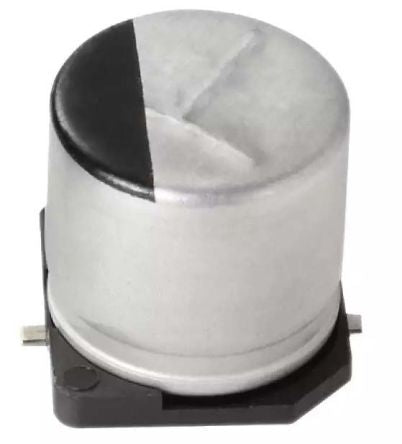

Panasonic 390μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 8 (Dia.) x 10.2mm +105°C 8mm 3.1mm [EEEFT1V391UP]; 145-8444
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 390 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 3.1mm |
| Series | FT |
| Leakage Current | ≤0.01 CV μA |
| Automotive Standard | AEC-Q200 |
| Dissipation Factor | 0.0012 |
| Tolerance | ±20% |
| Ripple Current | 850mArms |
| Polarised | Polar |
| Equivalent Series Resistance | 80mΩ |
