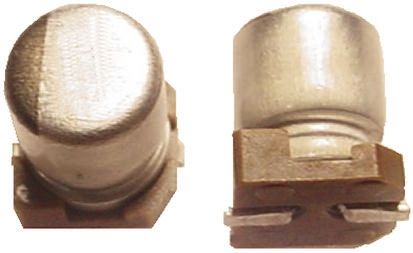

Panasonic 330μF 25V dc Aluminium Electrolytic Capacitor, Surface Mount 10 (Dia.) x 10.2mm +105°C 10mm [EEEHD1E331AP]; 166-8110
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 330 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 5000h |
| Series | HD SMD |
| Polarised | Polar |
| Equivalent Series Resistance | 800mΩ |
| Ripple Current | 238mA |
| Leakage Current | 3 μA |
| Tolerance | ±20% |
